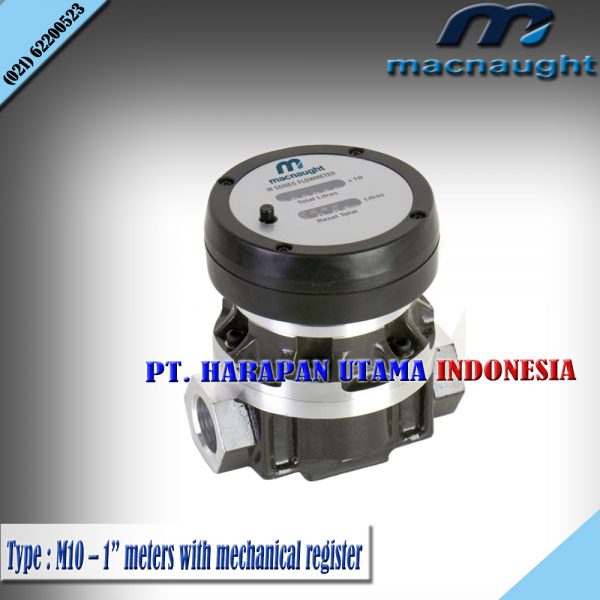

Flow Meter Macnaught Type M10 meters with mechanical register Size 1 inch

The M10 is the medium capacity meter in the M-SERIESTM range. It
has the ability to handle a wide range of fluid viscosities with
exceptional levels of repeatability and durability.

• Mechanical version; Oval Gear design; Australian Made
• 1” BSPP or NPT in Aluminium or 316 Stainless Steel
• Flow Rate Range (above 5 cPs): 6 to 120 LPM
• Mechanical Register with Reset
• Options: Rubber Boot; Heavy Duty Industrial Register;

Features
• Compact size.
• Easy to read and operate mechanical register.
• Flexibility of installation options (e.g. can be mounted horizontally or vertically; no flow
conditioning required).
• Low pressure drop allows for economical pump selection or gravity flow applications.
• Meter construction enables fast and easy on-site servicing without removal from
application.
• Meter accuracy is verified by a factory calibration check after which an individual
metrology report is issued.
• Meter design minimises the number of wearable and replaceable parts and extends
product life.
• An Option of 100 Pulse per unit of measure output is available for the Analogue version.
