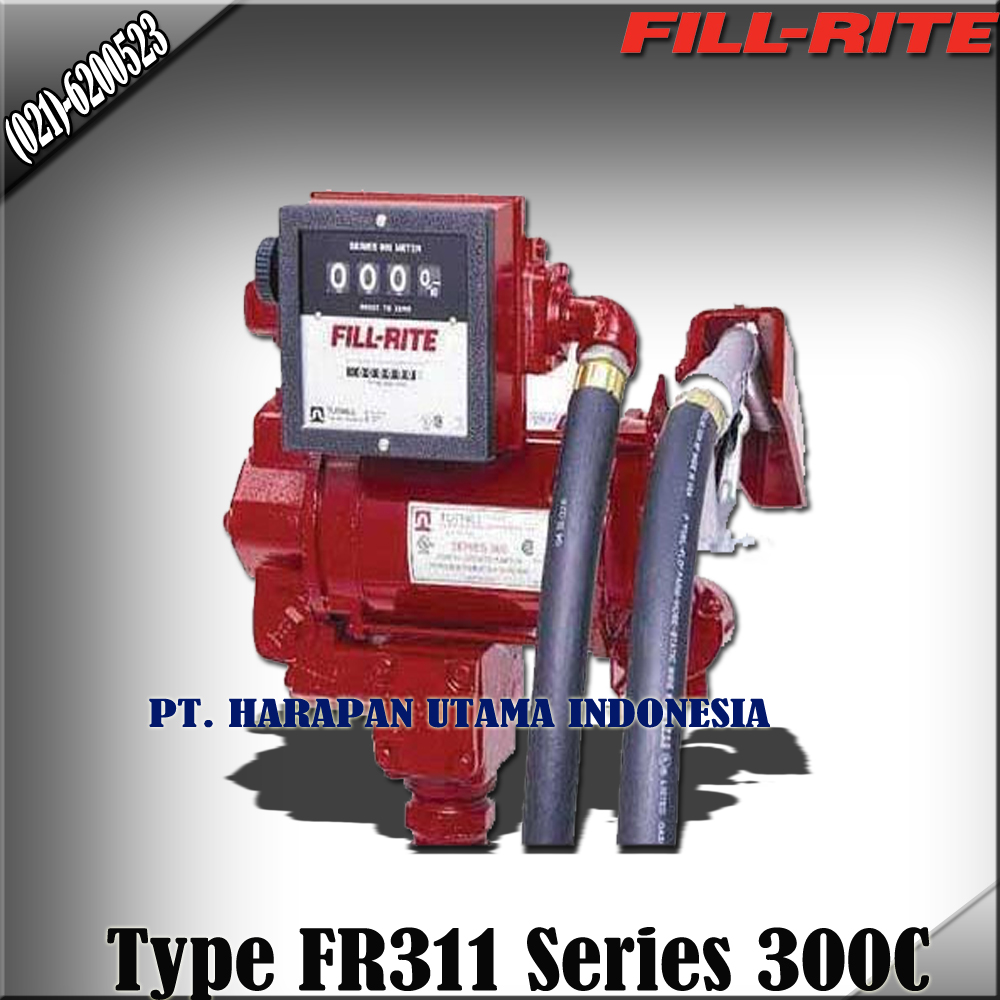

Flow Meter Fill-Rite AC Fuels Transfer Pumps Type FR311 series300 35GPM(132 LPM)

Model   :   FR 311 ( 132 LPM )

AC FUEL TRANSFER PUMPS – Super High Flow Pump

Description  :

Construction – Pump Housing   :   Cast Iron

Maximum Flow Rate With Factory Provided Hose & Nozzle   :   35 GPM ( 132 LPM )

Rotor Composition   :   Iron

Explosion – Proof Motor With 2 Sealed Ball Bearings   :   ¾ HP

Amp Draw From Battery   :   –

AC / Hertz   :   Dual Voltage 115 / 230 VAC 50 – 60 Hz

Thermal Overload Protection   :   Yes

Inlet   :   1.½” NPT

Outlet   :   1” NPT

Threaded Tank Adaptor   :   2” NPT

Internal Bypass Valve   :   Yes

Built – In Strainer   :   Yes

Motor Approvals   :   UL , CUL , CSA Listed

Spring Driven Diaphragm    :   –

Built – In Check Valve   :   Yes

Pump May Be Padlocked   :   Yes

Nozzle Hanger   :   –

Nozzle Boot to Protect From Dirt   :   Yes

Machined Carbon Vanes   :   Yes

Duty Cycle   :   30 Minute

 BOX CONTENTS

U/L Hose With Static Wire   :   1”  x  12’ ( 3.7 m )

Nozzle   :   1” Manual

15’ ( 4.6 m ) 3 – Wire Power Cable   :   –

APPLICATIONS

Compatible Fluids   :   Diesel Fuel , Gasoline , Kerosene , Mineral Spirits , Stoddard Solvent & Heptane

Description

Jual Flow Meter Fill-Rite AC Fuels Transfer Pumps Type FR311 series300 35GPM(132 LPM)

Harga Flow Meter Fill-Rite AC Fuels Transfer Pumps Type FR311 series300 35GPM(132 LPM)

DistributorFlow Meter Fill-Rite AC Fuels Transfer Pumps Type FR311 series300 35GPM(132 LPM)

kami menjual Flow Meter Fill-Rite AC Fuels Transfer Pumps Type FR311 series300 35GPM(132 LPM)
